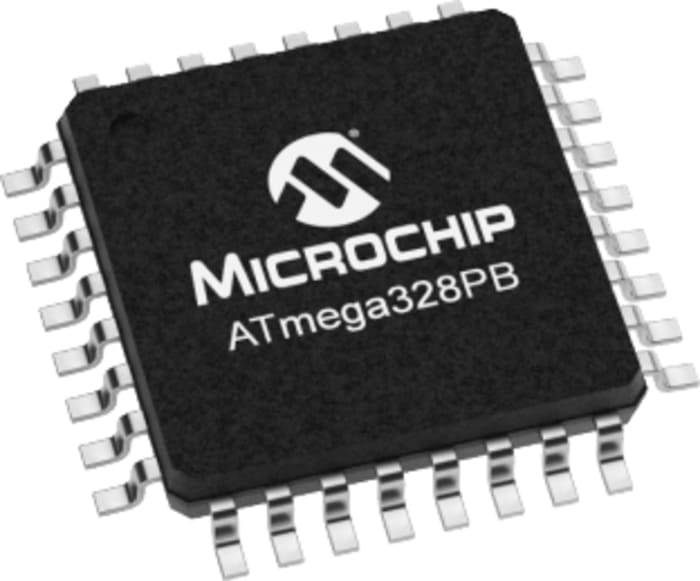

Microchip, 8bit 8 bit CPU, ATmega Microcontroller, 20MHz, 32 kB Flash, 32-Pin TQFP

Brand

Family Name

ATmega

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

32

Device Core

8 bit CPU

Data Bus Width

8bit

Program Memory Size

32 kB

Maximum Frequency

20MHz

RAM Size

1 kB

USB Channels

0

Number of PWM Units

1

Number of SPI Channels

2

Number of I2C Channels

2

Number of UART Channels

2

Number of CAN Channels

0

Number of USART Channels

2

Typical Operating Supply Voltage

1.8 → 5.5 V

Pulse Width Modulation

1 (10 Channel)

Dimensions

7.1 x 7.1 x 1.05mm

Width

7.1mm

Maximum Operating Temperature

+105 °C

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

RISC

Maximum Number of Ethernet Channels

0

ADCs

8 x 10 bit

Data Rate

15kbit/s

Length

7.1mm

Height

1.05mm

Number of LIN Channels

0

Number of Ethernet Channels

0

Number of PCI Channels

0

Number of ADC Units

1
