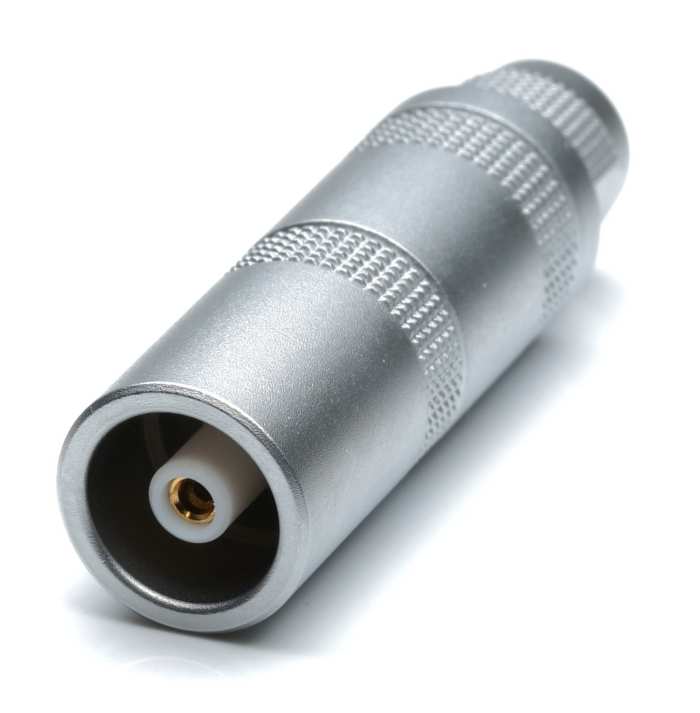

LEMO Circular Connector, 1 Contacts, Cable, 11.9 mm Connector, Socket, Female, IP50, 1S Series
Technical documents
Specifications
Brand
LemoNumber of Contacts
1
Product Type
Circular Connector
Mount Type
Cable
Connector Size
11.9 mm
Current
12A
Plug/Socket
Socket
Contact Gender
Female
IP Rating
IP50
Series
1S
Orientation
Straight
Voltage
4200 V
Mating Type
Push Pull
Shell Size
1
Minimum Operating Temperature
-55°C
Termination Type
Solder
Maximum Operating Temperature
250°C
Housing Material
Brass
Pole Format
1
Standards/Approvals
No
Contact Plating
Gold, Nickel
Contact Material
Brass Alloy Bronze Alloy
Country of Origin
Switzerland
Product details
Straight plugs with cable clamps
Equipped with a female contact for soldering.
Series 1S and 00
High quality, precision engineered connectors, employing a simple push-pull latching mechanism, high durability strain relief collets and in-built keying to prevent mis-mating. All metal body construction ensures EMC shielding, while push-pull design provides space saving and eliminates risk of unintentional disconnection of cable through shock, vibration or cable pull. This range offers three sizes of fully populated cable mount plugs and panel/PCB mount sockets, with optional collets and strain reliefs, to cover a wide range of cable sizes. They are ideal for instrumentation, medical and nuclear applications, plus many other special industry requirements.
