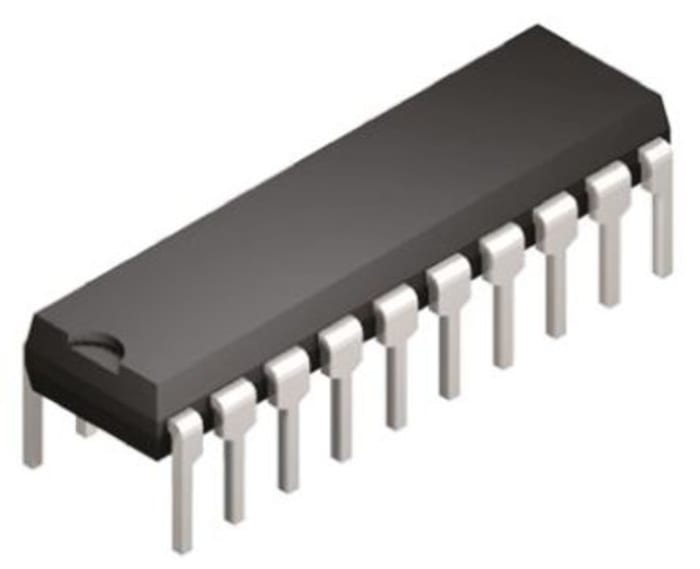

Microchip ATF16V8B-15PU Simple Programmable Logic Device ATF16V8B 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System

RS Stock No.: 127-8202Brand: MicrochipManufacturers Part No.: ATF16V8B-15PUDistrelec Article No.: 304-37-079
brand-logo
View all in SPLDs

Technical documents

Specifications

Brand

Microchip

Product Type

Simple Programmable Logic Device

Series

ATF16V8B

Number of Gates

150

Number of Macro Cells

8

Number of User I/Os

8

Maximum Internal Frequency

62MHz

In System Programmability

Yes

Re-programmability Support

Yes

Mount Type

Through Hole

Minimum Supply Voltage

4.5V

Package Type

PDIP

Pin Count

20

Maximum Supply Voltage

5V

Minimum Operating Temperature

-40°C

Maximum Propagation Delay Time

15ns

Maximum Operating Temperature

85°C

Height

4.95mm

Length

26.92mm

Width

7.11 mm

Standards/Approvals

RoHS

Automotive Standard

No

Country of Origin

Philippines

Product details

Simple Programmable Logic Device, Microchip

From Atmel, this high-performance programmable logic device boasts low power, high reliability and an industry standard architecture.
