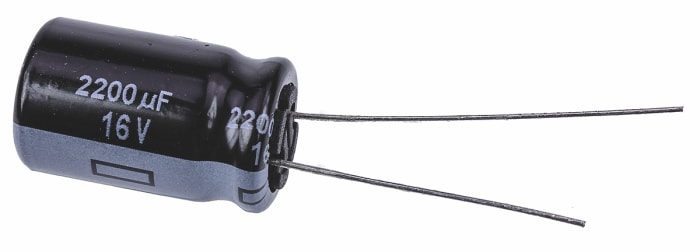

Panasonic 2200μF Electrolytic Aluminium Electrolytic Capacitor 16V dc, Through Hole - EEUEB1C222

RS Stock No.: 747-2058Brand: PanasonicManufacturers Part No.: EEUEB1C222
brand-logo
View all in Aluminium Capacitors

Technical documents

Specifications

Brand

Panasonic

Capacitance

2200µF

Voltage

16V dc

Mounting Type

Through Hole

Technology

Electrolytic

Dimensions

12.5 (Dia.) x 25mm

Height

25mm

Minimum Operating Temperature

-40°C

Diameter

12.5mm

Maximum Operating Temperature

+105°C

Lead Pitch

5mm

Lifetime

10000h

Ripple Current

706mA

Leakage Current

352 μA

Tolerance

±20%

Series

EB Radial
