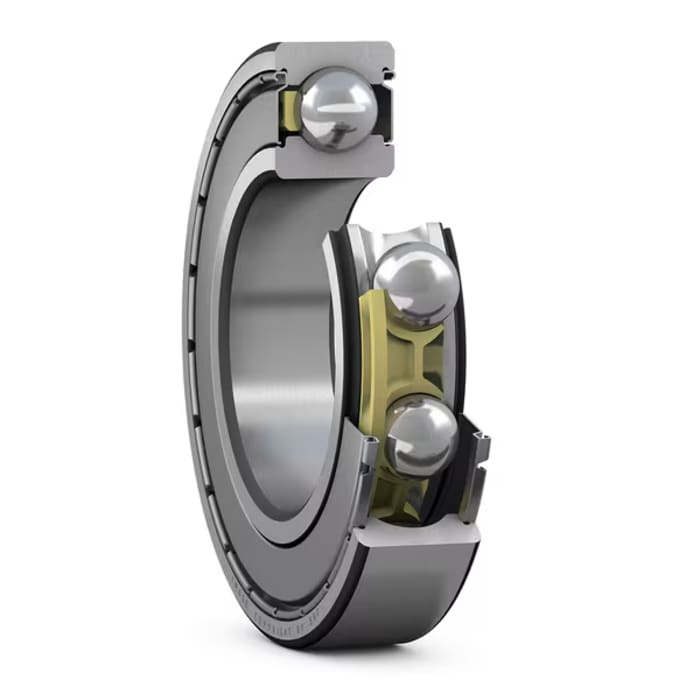

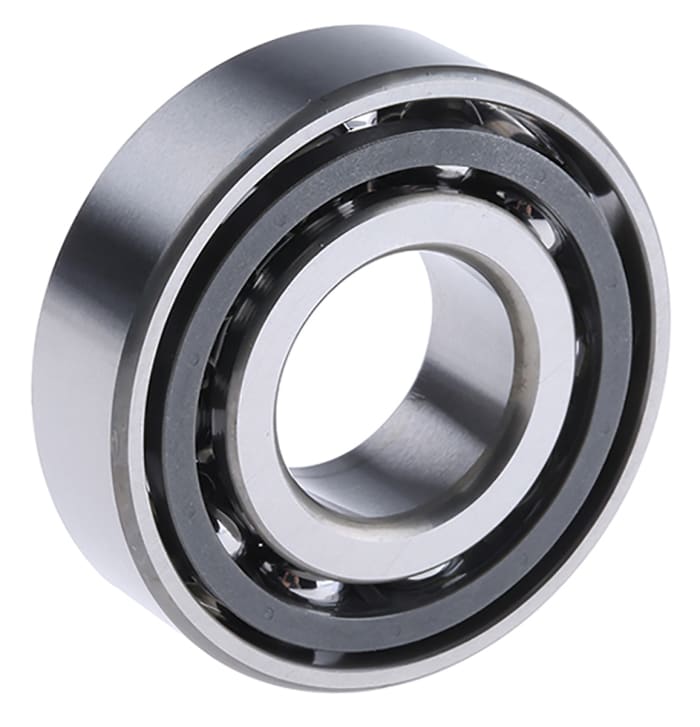

SKF 7204 BEP 1 Row Ball Bearing - 20 mm ID, 47 mm OD 14 mm Race Width
Technical documents
Specifications
Brand
SKFProduct Type
Ball Bearing
Inside Diameter
20 mm
Outside Diameter
47 mm
Race Width
14mm
Cage Material
Non-Metallic
Ball Material
Steel
End Type
Open
Number of Rows
1
Contact Angle
40°
Static Load Rating
7.65kN
Dynamic Load Rating
13.3kN
Bore Type
Parallel
Standards/Approvals
No
Limiting Speed
18000rpm
Race Type
Plain
Bearing Type
Single Row Angular Contact Ball
Country of Origin
Austria
Product details
Single Row - Angular Contact - Open Type
These single row angular bearings have a high and low shoulder on both raceways. This allows a large number of balls to be accommodated in the bearing to give it a relatively high loading capacity.
The bearings have a contact angle of 40° and are therefore ideal for withstanding high axial loads
They are non-separable and can tolerate relatively high speeds
Stock information temporarily unavailable.
P.O.A.
1
P.O.A.
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 5 | P.O.A. |
| 6 - 11 | P.O.A. |
| 12+ | P.O.A. |
