West Instruments PID Temperature Controller, 45 x 45mm, 1 Output Relay, 100 → 240 V ac Supply Voltage ON/OFF
Technical documents
Specifications
Brand
West InstrumentsOutput Type
Relay
Supply Voltage
100 → 240 V ac
Size
45 x 45mm
Number of Outputs
1
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+55°C
Control Type
ON/OFF
IP Rating
IP20, IP66
Additional Functionality
ON/OFF
Input Type
RTD, Thermocouple
Panel Depth
120mm
Display Colour
Red
Product details

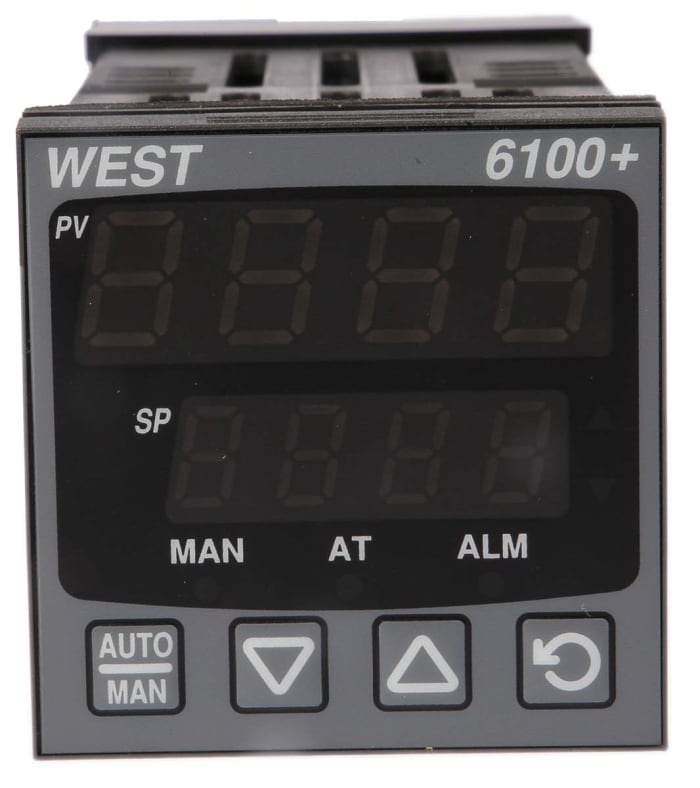

West 6100+ Temperature Controller
The West 6100+ is part of the Plus Series of controllers that take flexibility and ease of use to new levels.
The 6100+ controller is an evolved product from the N6100. The product benefits from having more versatile features and user-friendly functionalities. The features include remote setpoint inputs, digital inputs, plug in output modules, a customisable operator/HMI menu, jumperless and auto-hardware configuration, and 24 V dc transmitter power supply.
It has been designed to incorporate improvements, saves time, reduce inventory stock and virtually eliminate the likelihood of operator errors.
The 6100+ results in providing a product which surpasses competitive offerings in terms of ease of use, delivery and value for money.
• Dual setpoints with optional remote selection
• Plug in output modules allows installing just the functions needed
• Expanded user-selectable operator modes
• User-selectable plug-and-play output cards
• Process and loop alarms
• Adjustable hysteresis
• Optional analogue Remote Setpoint Input
• Optional 10 V SSR driver
• Improved Windows PC configuration software
• Improved easy to use HMI
• Jumperless input configuration
• Auto-hardware recognition
• Faster communication speeds
• More security options
• Backward compatible panel cut out, housing and terminal wiring capability
West Instruments Plus Series Temperature Controllers
Stock information temporarily unavailable.
Please check again later.
P.O.A.
1
P.O.A.
1
