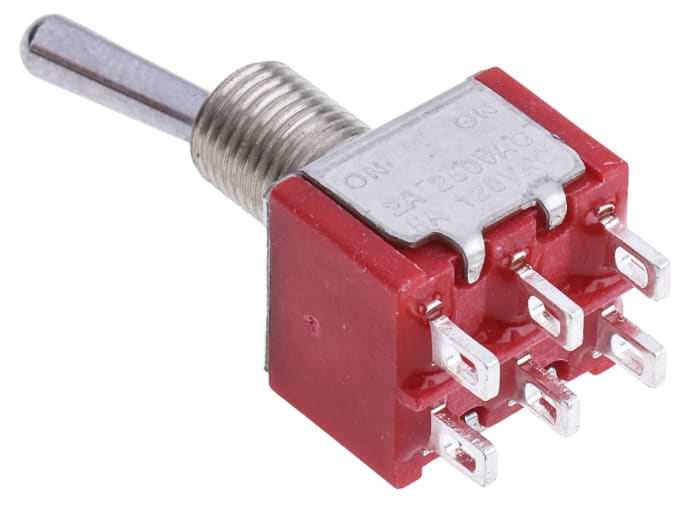

RS PRO Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 26 V dc, 112 V ac
Technical documents
Specifications
Brand
RS ProContact Configuration
DPDT
Product Type
Toggle Switch
Switch Operation
On-On
Switch Contact Current
5A
Mount Type
Panel
Terminal Type
Solder
Illuminated
No
Actuator Length
10.41mm
Contact DC Voltage
26V dc
Contact AC Voltage
112V ac
Minimum Operating Temperature
-30°C
Actuator Material
Brass
Maximum Operating Temperature
85°C
Switch Configuration
On-None-Off
Standards/Approvals
UL, RoHS, CSA, CE
Mechanical Life
40000Cycles
