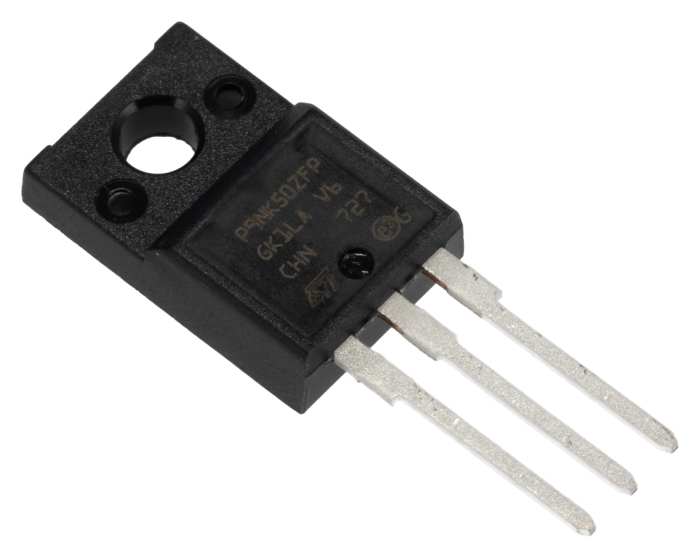

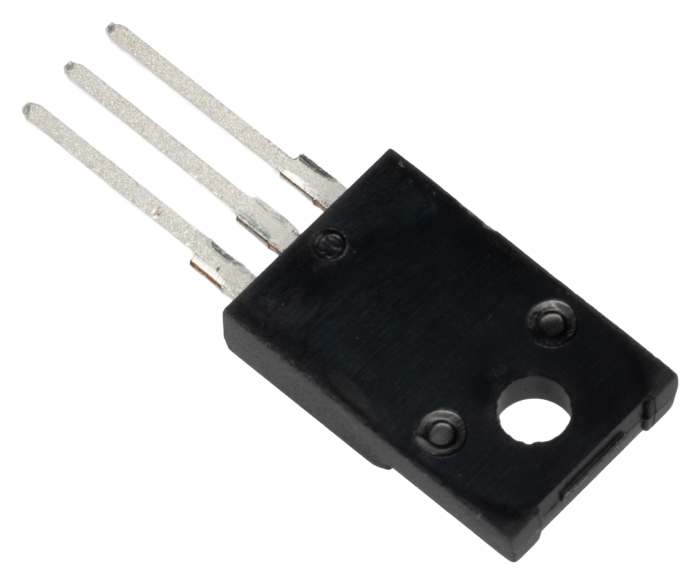

STMicroelectronics Type N-Channel MOSFET, 7.2 A, 500 V Enhancement, 3-Pin TO-220 STP9NK50ZFP
Technical documents
Specifications
Brand
STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
7.2A
Maximum Drain Source Voltage Vds
500V
Package Type
TO-220
Mount Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance Rds
850mΩ
Channel Mode
Enhancement
Typical Gate Charge Qg @ Vgs
32nC
Maximum Power Dissipation Pd
30W
Maximum Gate Source Voltage Vgs
30 V
Minimum Operating Temperature
-55°C
Forward Voltage Vf
1.6V
Maximum Operating Temperature
150°C
Width
4.6 mm
Length
10.4mm
Height
9.3mm
Standards/Approvals
No
Automotive Standard
No
Product details
N-Channel MDmesh™ SuperMESH™, 250V to 650V, STMicroelectronics
MOSFET Transistors, STMicroelectronics
Stock information temporarily unavailable.
P.O.A.
Standard
5
P.O.A.
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price |
|---|---|
| 5 - 20 | P.O.A. |
| 25 - 45 | P.O.A. |
| 50 - 95 | P.O.A. |
| 100 - 245 | P.O.A. |
| 250+ | P.O.A. |
